3D Printing in Mould Making

3D printing, also known as additive manufacturing, has revolutionized various industries by enabling rapid prototyping, customization, and complex geometrical fabrications. One of the significant applications of 3D printing is in mould making — a critical process in manufacturing for mass-producing parts through casting, injection molding, or other forming techniques.

Traditionally, mould making involves time-consuming and expensive processes using CNC machining, hand sculpting, or tooling. However, 3D printing offers an efficient, flexible, and cost-effective alternative.

Applications of 3D Printing in Mould Making

1. Prototype Moulds

   • Used for testing form, fit, and function before creating final production moulds.

   • Ideal for short-run production or validating designs quickly.

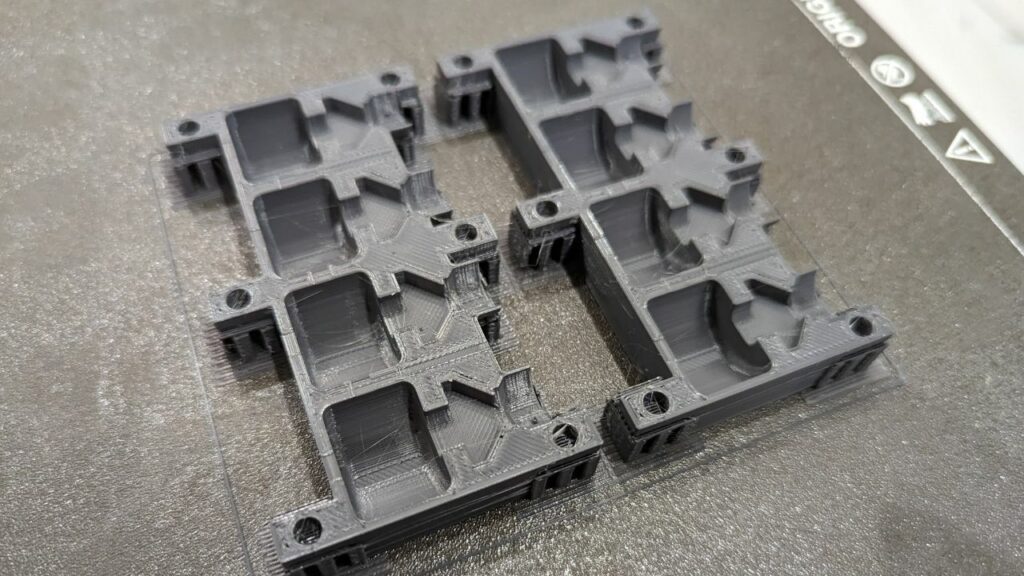

2. Direct Mould Printing

   • Moulds are printed directly using materials like resin, plastic, or even metal.

   • Suitable for low-volume production or custom applications.

3. Mould Inserts

   • 3D printed inserts can be placed within traditional moulds to introduce complex geometries.

   • Useful for integrating cooling channels or detailed surface textures.

4. Master Patterns for Silicone or Sand Casting

   • 3D printed patterns are used to make silicone, sand, or investment casting moulds.

   • Enables intricate detailing without manual sculpting.

Benefits of 3D Printing in Mould Making

• Speed
  Drastically reduces lead time compared to conventional mould-making techniques.

• Cost-Effective for Low Volumes
  Eliminates the need for expensive tooling, especially for prototyping or small batch runs.

• Design Flexibility
  Allows for complex geometries, undercuts, and internal features that are difficult or impossible to machine.

• Customization
  Ideal for bespoke or one-off moulds, especially in medical, dental, and jewelry applications.

• Reduced Waste
  Additive manufacturing uses only the material required, minimizing waste.

Common 3D Printing Technologies Used

1. Fused Deposition Modeling (FDM)

   • Low-cost and widely accessible.

   • Suitable for basic prototype moulds and patterns.

2. Stereolithography (SLA)

   • High precision and fine surface finish.

   • Popular for silicone moulds and casting masters.

3. Selective Laser Sintering (SLS)

   • Strong and functional parts without support structures.

   • Good for complex and durable moulds.

4. Digital Light Processing (DLP)

   • Fast and accurate.

   • Excellent for dental and jewelry mould applications.

5. Direct Metal Laser Sintering (DMLS)

   • Used to create metal moulds or inserts.

   • Enables conformal cooling channels for efficient injection moulding.

Materials Used in 3D Printed Moulds

• Photopolymer Resins – For high-detail and smooth finishes.

• PLA/ABS/Nylon – Affordable and functional for prototypes.

• High-Temperature Resins – Withstand the heat of injection moulding.

• Metal Alloys (Steel, Aluminum) – For high-durability production moulds.

Challenges and Limitations

• Durability
  Some 3D printed moulds may not withstand high temperatures or pressure, especially during injection moulding.

• Surface Finish
  Post-processing like sanding, polishing, or coating is often required for a smooth finish.

• Material Constraints
  Limited selection of materials compared to traditional tooling.

• Cost for High Volumes
  Not always cost-effective for large-scale manufacturing compared to traditional moulding methods.

Conclusion

3D printing in mould making offers transformative benefits in speed, cost, and design complexity. It is especially valuable for prototyping, small batch production, and custom applications. While it may not fully replace traditional mould-making methods in high-volume manufacturing, it serves as a powerful complementary tool in modern production workflows.
